Japan - naval aviation and armaments
F1M2
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| F1M2 | observer | 1940 - 3/1944 | 1114 | 1945 | --- |
| Modification | F1M2 |
|
Wing span, m |
11.00 |
|
Length, m |
9.50 |
|
Height, m |
4.00 |
|
Wings area, m2 |
29.54 |
|
Empty mass, kg |
1928 |
|
Full flying-off mass, kg |
2855 |
| Engine | 1 Mitsubishi MK2 Zuisei 13 |
| Power, h. p. | 875 |
| Maximal speed, km/h | 370 |
| Cruise speed, km/h | 204 |
| Flying range, km | 740 |
| Vertical speed, m/s | 10.0 |
| Maximal altitude, m | 9440 |
| Complement | 2 |
| Armament | 2 x 7.7-mm 97-shiki MG, 1 x 7.7-mm 92-shiki MG, 120 kg of bombs (4 x 30-kg) |
These seaplanes were used as reconnaissance, observing, ASW planes and light bombers. Main diving bombers and fighters at Aleuts in 1942.

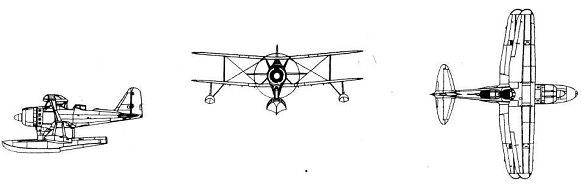

F1M2
