Japan - naval aviation and armaments
E7K2
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| E7K1 | recon | 5/1934 - 1938 | 185 | 1945 | 3 seats, Hiro 91-shiki engine (620 hp), 3 MG, 120 kg of bombs |
| E7K2 | 11/1938 - early 1941 | 345 | 1945 | Mitsubishi MK2 Zuisei 11 engine (870 hp) |
| Modification | E7K2 |
|
Wing span, m |
14.00 |
|
Length, m |
10.50 |
|
Height, m |
4.85 |
|
Wings area, m2 |
43.60 |
|
Empty mass, kg |
2100 |
|
Full flying-off mass, kg |
3300 |
| Engine | 1 Mitsubishi MK2 Zuisei 11 |
| Power, h. p. | 870 |
| Maximal speed, km/h | 275 |
| Cruise speed, km/h | 185 |
| Flying range, km | 1845 |
| Vertical speed, m/s | 3.7 |
| Maximal altitude, m | 7060 |
| Complement | 3 |
| Armament | 3 x 7.7-mm 92-shiki MG, 120 kg of bombs (2 x 60-kg) |
Some planes were used by kamikaze at end of war.

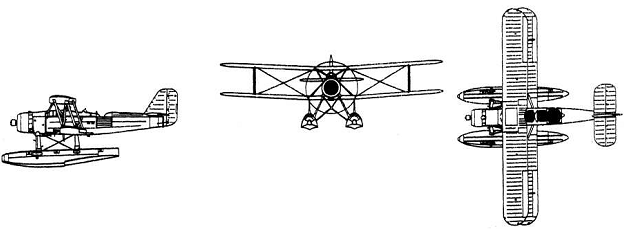

E7K2
