Japan - naval aviation and armaments
E4N2
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| E4N2 | recon | 1931 - 1933 | 85 | 1942 | --- |
| Modification | E4N2 |
|
Wing span, m |
10.98 |
|
Length, m |
8.87 |
|
Height, m |
3.97 |
|
Wings area, m2 |
29.66 |
|
Empty mass, kg |
1252 |
|
Full flying-off mass, kg |
1800 |
| Engine | 1 Nakajima Kotobuki |
| Power, h. p. | 580 |
| Maximal speed, km/h | 232 |
| Cruise speed, km/h | 148 |
| Flying range, km | |
| Vertical speed, m/s | 4.8 |
| Maximal altitude, m | 5740 |
| Complement | 2 |
| Armament | 2 x 7.7-mm 92-shiki MG, 60 kg of bombs (2 x 30-kg) |

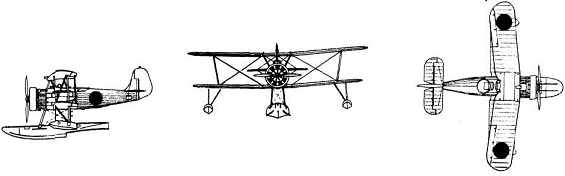

E4N2
