Japan - naval aviation and armaments
E15K1 Shiun
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| E15K1 | recon | 1942 - 2/1944 | 15 | 1945 | dropped central float |
| Modification | E15K1 |
|
Wing span, m |
14.00 |
|
Length, m |
11.59 |
|
Height, m |
4.95 |
|
Wings area, m2 |
30.00 |
|
Empty mass, kg |
3165 |
|
Full flying-off mass, kg |
4900 |
| Engine | 1 Mitsubishi MK4S Kasei 24 |
| Power, h. p. | 1850 |
| Maximal speed, km/h | 468 |
| Cruise speed, km/h | 296 |
| Flying range, km | 3550 |
| Vertical speed, m/s | 10.0 |
| Maximal altitude, m | 9830 |
| Complement | 2 |
| Armament | 1 x 7.7-mm 92-shiki MG, 120 kg of bombs |

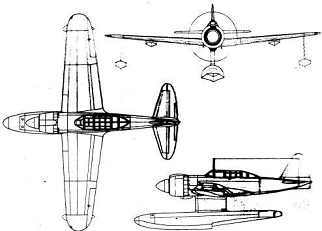

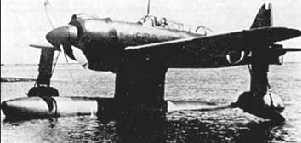

E15K1 Shiun
© Ivan Gogin, 2008
