Japan - naval aviation and armaments
Army model Ki.15-II
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| C5M1 | recon | 1938 - 1939 | 20 | 1945 | 2 seats, Mitsubishi Zuisei 12 engine (875 hp), 1 MG |
| C5M2 | 1939 - 1940 | 30 | 1945 | Nakajima Sakae 12 engine (950 hp) |
| Modification |
C5M2 |
|
Wing span, m |
12.00 |
|
Length, m |
8.70 |
|
Height, m |
3.46 |
|
Wings area, m2 |
20.36 |
|
Empty mass, kg |
1715 |
|
Full flying-off mass, kg |
2345 |
| Engine | 1 Nakajima Sakae 12 |
| Power, h. p. | 950 |
| Maximal speed, km/h | 487 |
| Cruise speed, km/h | 380 |
| Flying range, km | 1100 |
| Vertical speed, m/s | 12.8 |
| Maximal altitude, m | 9580 |
| Complement | 2 |
| Armament | 1 x 7.7 89-shiki MG |
Survivors were used by kamikaze at end of war.

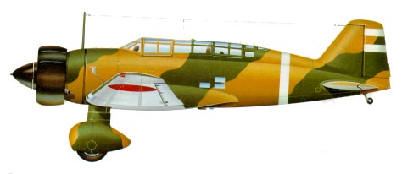

Ki.15-I

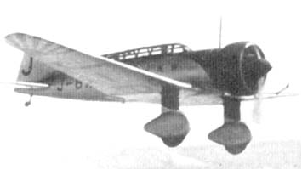

C5M1
