Japan - naval aviation and armaments

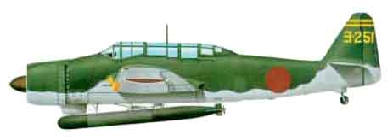

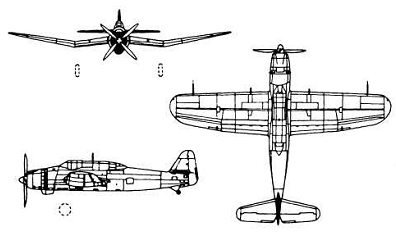

B7A2 Ryusei
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| B7A2 | torpedo bomber | 4/1944 - 8/1945 | 105 | 1945 | --- |
| Modification | B7A2 |
|
Wing span, m |
14.40 |
|
Length, m |
11.49 |
|
Height, m |
4.08 |
|
Wings area, m2 |
35.40 |
|
Empty mass, kg |
3810 |
|
Full flying-off mass, kg |
6500 |
| Engine | 1 Nakajima NK9C Homare 12 |
| Power, h. p. | 1825 |
| Maximal speed, km/h | 566 |
| Cruise speed, km/h | |
| Flying range, km | 3020 |
| Vertical speed, m/s | 9.7 |
| Maximal altitude, m | 11250 |
| Complement | 2 |
| Armament | 2 x 20 99-shiki 2-gata guns, 1 x 13.2-mm 2-shiki MG, 1 800-kg torpedo or 860 kg of bombs |
B7A2 Ryusei
B7A2 Ryusei
