Japan - naval aviation and armaments

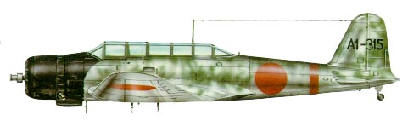

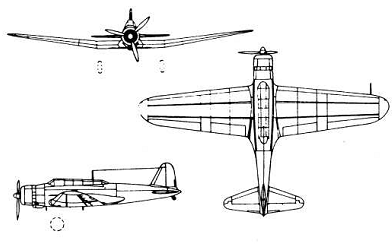

B5N2
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| B5N1 | torpedo bomber | 11/1937 - 1940 | ~500 | 8/1945 | 3 seats, Nakajima Hikari 3 engine (770 hp), 1 MG, 1 800-kg torpedo or 800 kg of bombs, 365 km/h |
| B5N2 | 1940 - 3/1944 | ~650 | 8/1945 | Nakajima NK1B Sakae 11 engine (1000 hp) |
| Modification |
B5N2 |
|
Wing span, m |
15.52 |
|
Length, m |
10.30 |
|
Height, m |
3.70 |
|
Wings area, m2 |
37.70 |
|
Empty mass, kg |
2279 |
|
Full flying-off mass, kg |
3800 |
| Engine | 1 Nakajima NK1B Sakae 11 |
| Power, h. p. | 1000 |
| Maximal speed, km/h | 378 |
| Cruise speed, km/h | 260 |
| Flying range, km | 1990 |
| Vertical speed, m/s | 6.6 |
| Maximal altitude, m | 8260 |
| Complement | 3 |
| Armament | 1 x 7.7 92-shiki MG, 1 800-kg torpedo or 800 kg of bombs |
B5N2
B5N2
