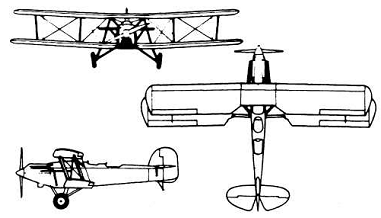

Japan - naval aviation and armaments
B2M1
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| B2M1 | torpedo bomber | 1932 - 1934 | 204 | late 1937 | 2 seats, Hispano-Suiza 12Lb engine (650 hp), 2 MG, 1 800-kg torpedo or 480 kg of bombs |
| B2M2 | 1934 - 1934 | decreased wing span |
| Modification |
B2M1 |
|
Wing span, m |
15.22 |
|
Length, m |
10.27 |
|
Height, m |
3.71 |
|
Wings area, m2 |
62.40 |
|
Empty mass, kg |
1840 |
|
Full flying-off mass, kg |
3600 |
| Engine | 1 Hispano-Suiza 12Lb |
| Power, h. p. | 650 |
| Maximal speed, km/h | 213 |
| Cruise speed, km/h | 184 |
| Flying range, km | 960 |
| Vertical speed, m/s | |
| Maximal altitude, m | 4500 |
| Complement | 3 |
| Armament | 2 x 7.7 Vickers MG, 1 800-kg torpedo or 480 kg of bombs |
B2M1
