Japan - naval aviation and armaments
A5M4
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| A5M1 | fighter | 6/1937 - 1941 | 988 | 4/1942 | 1 seat, Nakajima Kotobuki 2KAI1 engine (580 hp), 2 MG |
| A5M2a | Kotobuki 2KAI3 engine (610 hp) | ||||
| A5M2b | Kotobuki 3 engine (580 hp), 2 MG, 60 kg of bombs | ||||
| A5M4 | Kotobuki 41 KAI engine on later planes (785 hp) |
| Modification |
A5M4 |
|
Wing span, m |
11.00 |
|
Length, m |
7.56 |
|
Height, m |
3.27 |
|
Wings area, m2 |
17.80 |
|
Empty mass, kg |
1216 |
|
Full flying-off mass, kg |
1671 |
| Engine | 1 Nakajima Kotobuki 41 KAI |
| Power, h. p. | 785 |
| Maximal speed, km/h | 434 |
| Cruise speed, km/h | |
| Flying range, km | 1200 |
| Vertical speed, m/s | 14.3 |
| Maximal altitude, m | 9800 |
| Complement | 1 |
| Armament | 2 x 7.7 89-shiki MG, 60 kg of bombs |

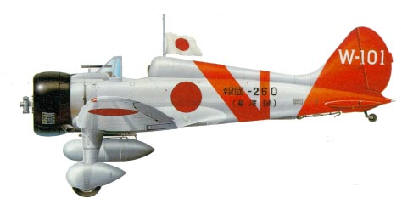

A5M4 (Soryu)
A5M4
