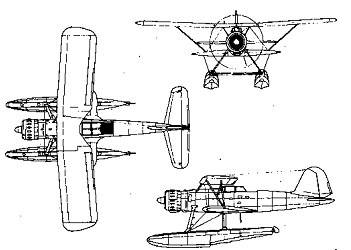

He 114A-1
Germany - naval aviation and armaments
He 114A-1
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| He 114A-0 | recon | 12/1936 - 1938 | 10 | early 1942 | BMW 132De engine (880 hp), unarmed |
| He 114A-1 | 33 | BMW 132N engine (865 hp), unarmed |
| Modification |
He 114A-2 |
|
Wing span, m |
13.30 |
|
Length, m |
11.90 |
|
Height, m |
5.15 |
|
Wings area, m2 |
42.30 |
|
Empty mass, kg |
2314 |
|
Full flying-off mass, kg |
3420 |
| Engine | BMW 132K |
| Power, h. p. | 960 |
| Maximal speed, km/h | 335 |
| Cruise speed, km/h | 265 |
| Flying range, km | 1050 |
| Vertical speed, m/s | 5.6 |
| Maximal altitude, m | 4800 |
| Complement | 2 |
| Armament | 2 x 7.9 MG15, 100 kg bombs |
All He 114A-2 were delivered as export He 114B-2.
He 114A-2
