Germany - naval aviation and armaments

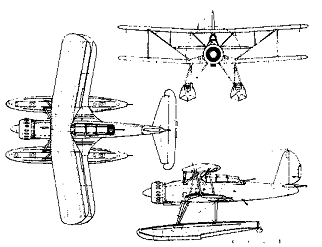

Ar 95A-1
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| Ar 95A-1 | recon | 2/1941 | 12 | autumn 1944 | --- |
| Modification |
Ar 95A-1 |
|
Wing span, m |
12.50 |
|
Length, m |
11.10 |
|
Height, m |
5.20 |
|
Wings area, m2 |
44.00 |
|
Empty mass, kg |
2537 |
|
Full flying-off mass, kg |
3560 |
| Engine | BMW 132Dc |
| Power, h. p. | 880 |
| Maximal speed, km/h | 302 |
| Cruise speed, km/h | 250 |
| Flying range, km | 1090 |
| Vertical speed, m/s | 6.5 |
| Maximal altitude, m | 7300 |
| Complement | 2 |
| Armament | 1 x 7.9 MG15, 1 x 7.9 MG17, 500 kg bombs (1 x 500-kg) or 1 x 700-kg torpedo |

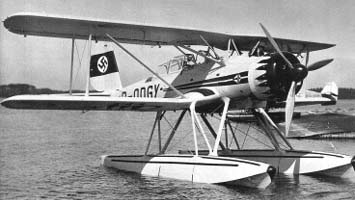

Ar 95 V3
