France - naval aviation and armaments
Sopwith 1A2
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| Sopwith 1A2 (11/2-Strutter) | recon bomber | 1920 - 1922 | 20 | 1922 | --- |
| Modification |
Sopwith 1A2 (11/2-Strutter) |
|
Wing span, m |
10.21 |
|
Length, m |
7.69 |
|
Height, m |
3.12 |
|
Wings area, m2 |
32.14 |
|
Empty mass, kg |
592 |
|
Full flying-off mass, kg |
1062 |
| Engine | 1 Clerget 9Z-9 |
| Power, h. p. | 110 - 130 |
| Maximal speed, km/h | 164 |
| Cruise speed, km/h | 142 |
| Flying range, km | 565 |
| Vertical speed, m/s | |
| Maximal altitude, m | 4570 |
| Complement | 1 - 2 |
| Armament | 1 - 2 õ 7.7 Vickers MG, 44 kg bombs (4 õ 11-kg) |

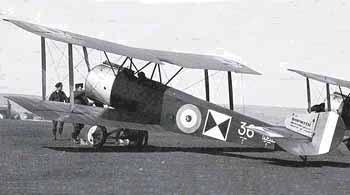

11/2-strutter
