France - naval aviation and armaments
SB2U-3
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| V.156F (SB2U-2 Vindicator) | diving bomber | 1939 | 39 | 1940 | Pratt & Whitney R-1535-96 engine (825 hp), 2 7.6mm MG, 454 kg of bombs |
| Modification | V.156F |
|
Wing span, m |
12.80 |
|
Length, m |
10.36 |
|
Height, m |
3.12 |
|
Wings area, m2 |
28.33 |
|
Empty mass, kg |
2555 |
|
Full flying-off mass, kg |
4272 |
| Engine | 1 Pratt & Whitney R-1535-96 |
| Power, h. p. | 825 |
| Maximal speed, km/h | 391 |
| Cruise speed, km/h | 244 |
| Flying range, km | 1803 |
| Vertical speed, m/s | 5.4 |
| Maximal altitude, m | 7195 |
| Complement | 2 |
| Armament | 2 x 7.5 MAC MG, 454 kg of bombs |

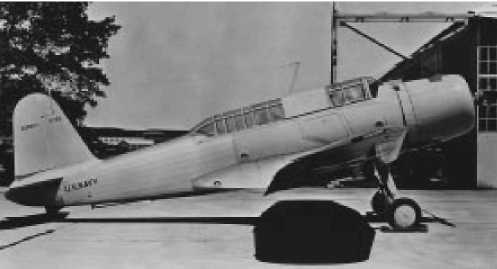

XSB2U-1
