France - naval aviation and armaments

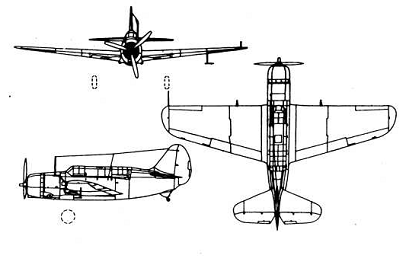

SB2C-4 Helldiver
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| SB2C-5 | diving bomber | 1950 | 30 | 1954 | 2 seats, Wright R-2600-20 engine (1900 hp), 2 20mm guns, 2 7.6mm MG, 725 kg of bombs or 454-kg bomb and 4 127-mm rockets |
| Modification |
SB2C-4 |
|
Wing span, m |
15.16 |
|
Length, m |
11.18 |
|
Height, m |
4.01 |
|
Wings area, m2 |
39.20 |
|
Empty mass, kg |
4784 |
|
Full flying-off mass, kg |
7537 |
| Engine | 1 Wright R-2600-20 |
| Power, h. p. | 1900 |
| Maximal speed, km/h | 457 |
| Cruise speed, km/h | 254 |
| Flying range, km | 1876 |
| Vertical speed, m/s | |
| Maximal altitude, m | 8870 |
| Complement | 2 |
| Armament | 2 õ 20 guns, 2 õ 7.6 MG, 725 kg of bombs or 454-kg bomb and 4 127-mm rockets |
SB2C-3 Helldiver
