France - naval aviation and armaments
P.L.101
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| P.L.10 | recon | 1930 - 1931 | 30 | 1938 | 2 seats, Hispano-Suiza 12Lb engine (600 hp), 2 7.5mm MG, 60 kg bombs |
| P.L.101 | recon | 1933 - 1934 | 30 | 3/1940 | minor alterations |
| Modification | P.L.10 |
P.L.101 |
|
Wing span, m |
14.20 | 14.20 |
|
Length, m |
9.75 | 9.75 |
|
Height, m |
3.75 | 3.75 |
|
Wings area, m2 |
56.85 | 56.85 |
|
Empty mass, kg |
1810 | 2020 |
|
Full flying-off mass, kg |
2800 | 3150 |
| Engine | 1 Hispano-Suiza 12Lb | 1 Hispano-Suiza 12Lb |
| Power, h. p. | 600 | 600 |
| Maximal speed, km/h | 200 | 220 |
| Cruise speed, km/h | 130 | 130 |
| Flying range, km | 650 | 600 |
| Vertical speed, m/s | ||
| Maximal altitude, m | 5400 | 4500 |
| Complement | 2 | 2 |
| Armament | 2 x 7.5 MAC MG, 60 kg bombs | 2 x 7.5 MAC MG, 60 kg bombs |

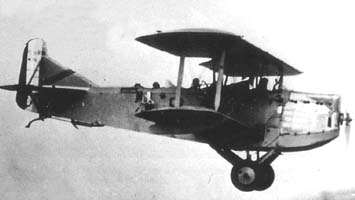

P.L.10

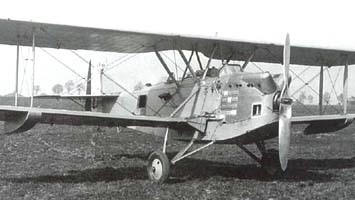

P.L.101
