France - naval aviation and armaments

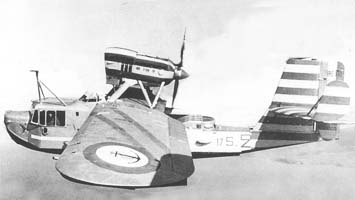

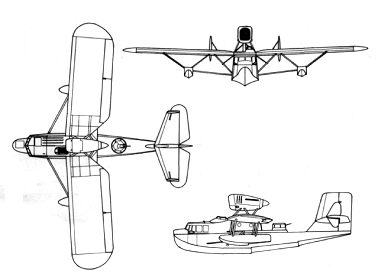

Loire 130M
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| Loire 130M | recon | 8/1936 - 10/1938, late 1940 - 1941 | 126 | autumn 1947 | --- |
| Loire 130C | 12/1949 | strengthened wing, advanced cooling |
| Modification |
Loire 130M |
|
Wing span, m |
16.00 |
|
Length, m |
11.30 |
|
Height, m |
3.85 |
|
Wings area, m2 |
40.10 |
|
Empty mass, kg |
2090 |
|
Full flying-off mass, kg |
3396 |
| Engine | 1 Hispano-Suiza 12Xirs |
| Power, h. p. | 690 |
| Maximal speed, km/h | 226 |
| Cruise speed, km/h | 172 |
| Flying range, km | 1100 |
| Vertical speed, m/s | |
| Maximal altitude, m | 6000 |
| Complement | 3 + 4 passengers |
| Armament | 2 x 7.5 MAC MG, 150 kg bombs |
Loire 130C
