France - naval aviation and armaments
H-19D Elephant Joyeux
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| H-19D | multirole | 1956 | 15 | 1960 | --- |
| Modification |
H-19D |
|
Rotor diameter, m |
16.16 |
|
Length, m |
12.88 |
|
Height, m |
4.07 |
|
Rotating area, m2 |
204.75 |
|
Empty mass, kg |
2381 |
|
Full flying-off mass, kg |
3583 |
| Engine | 1 Pratt & Whitney R-1340-57 |
| Power, h. p. | 600 |
| Maximal speed, km/h | 180 |
| Cruise speed, km/h | 148 |
| Flying range, km | 578 |
| Vertical speed, m/s | 5.2 |
| Maximal altitude, m | 3930 |
| Complement | 2 - 3 |
| Armament | 10 passenger or 2268 kg of cargo |

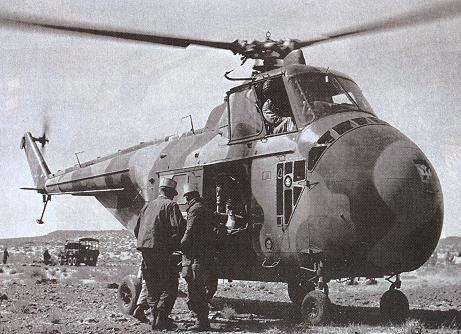

H-19D
