France - naval aviation and armaments

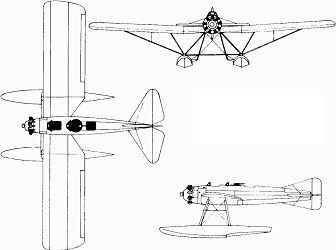

G.L.810Hy
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| G.L.810Hy | recon | 7/1931 - 1934 | 24 | 7/1943 | 3 seats, Gnome-Rhône 9Ady engine (420 hp), 3 7.7mm MG, 150 kg bombs |
| G.L.811Hy | 20 | folding wings | |||
| G.L.812Hy | 29 | minor alterations | |||
| G.L.813Hy | 13 | minor alterations |
| Modification |
G.L.810Hy |
|
Wing span, m |
16.00 |
|
Length, m |
10.49 |
|
Height, m |
3.56 |
|
Wings area, m2 |
41.00 |
|
Empty mass, kg |
1670 |
|
Full flying-off mass, kg |
2290 |
| Engine | 1 Gnome-Rhône 9Ady |
| Power, h. p. | 420 |
| Maximal speed, km/h | 195 |
| Cruise speed, km/h | 150 |
| Flying range, km | 560 |
| Vertical speed, m/s | |
| Maximal altitude, m | 5800 |
| Complement | 3 |
| Armament | 3 x 7.7 Vickers MG, 150 kg bombs |

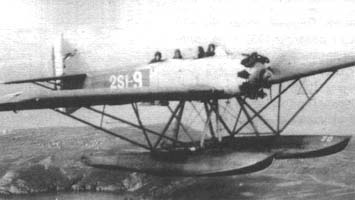

G.L.812Hy
