France - naval aviation and armaments

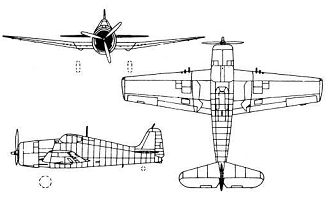

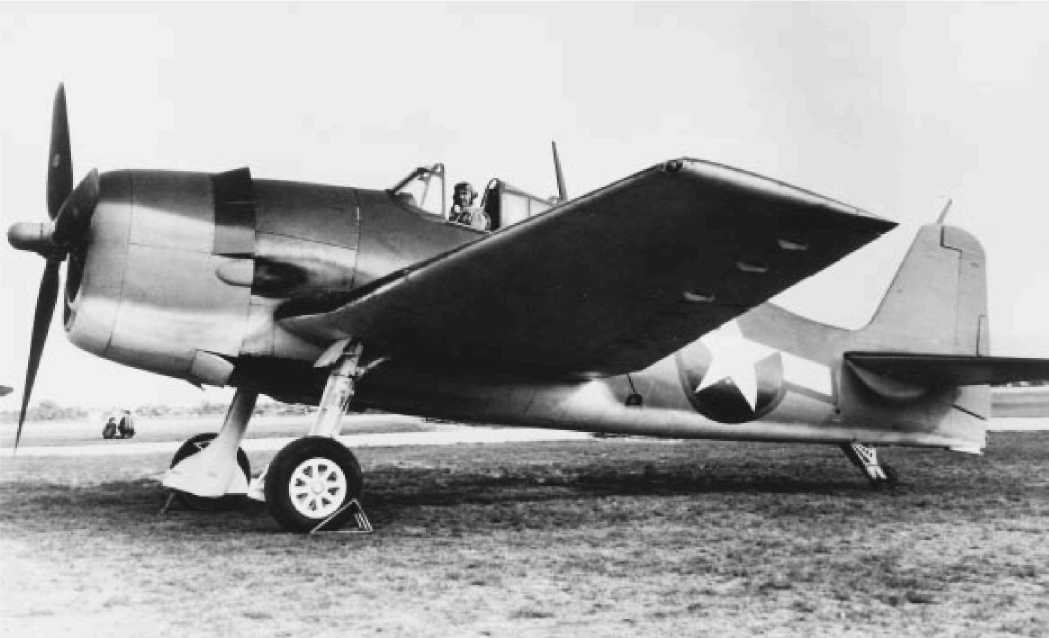

F6F-5 Hellcat
| Modification | Purpose | Deliveries | Number of commissioned | Discarding | Differences from the previous modification |
| F6F-5 | fighter | 1950 | 50 | 1955 | 1 seat, Pratt & Whitney R-2800-10W engine (2200 hp), 6 12.7mm MG or 2 20mm guns and 4 12.7mm MG, 6 127mm rockets or 2 454kg bombs |
| Modification |
F6F-5 |
|
Wing span, m |
13.06 |
|
Length, m |
10.24 |
|
Height, m |
4.11 |
|
Wings area, m2 |
31.03 |
|
Empty mass, kg |
4152 |
|
Full flying-off mass, kg |
6991 |
| Engine | 1 Pratt & Whitney R-2800-10W |
| Power, h. p. | 2200 |
| Maximal speed, km/h | 611 |
| Cruise speed, km/h | |
| Flying range, km | 2100 |
| Vertical speed, m/s | |
| Maximal altitude, m | 11400 |
| Complement | 1 |
| Armament | (2 õ 20 guns, 4 õ 12.7 MG) or 6 õ 12.7 MG, 6 127-mm rockets or 908 kg of bombs (2 õ 454-kg) |
F6F-3 Hellcat
